Free Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structure

Supply Ability : 5000 SET/MONTH

Dimensions : Customizable

Payment Terms : T/T

Model Number : DS\DF\DA\DT\DFH\DFS\BT\DB\P\HBY\HBYS

Cam material : Default 42CrMoAl，Customizable

Packaging Details : PLYWOOD BOX

COLOUR : DEFAULT GRAY (CUSTOMIZABLE)

Delivery Time : 4 DAYS-20 DAYS

Price : 200 $/SET~4500 $/SET

Hardness : 50HRC~72HRC ，Customizable

MOQ : ≥1000 $

REPOSITIONING ACCURACY : ±4 arcse(±2 arcse)

Longest lifespan : 60000 hours

Warranty : 1year

Place of Origin : CHINA

Brand Name : HONEPAN

Certification : ISO9001

POSITIONAL ACCURACY : ±30 arcse (±15 arcse)

Contact Now

Free Stop Heavy Duty Indexers
DC Series Horizontal Cam Rotary Table

Our DC Series Horizontal Cam Rotary Tables feature advanced internal transmission technology designed for precision manufacturing applications.

  • Cam roller transmission structure for superior performance
  • Pre-pressed cam and needle roller bearings eliminate backlash
  • Zero sliding friction operation
  • High repeatability in forward and reverse movements
  • No regular calibration or adjustment required
  • Maintains zero-backlash characteristics over time
  • High precision and efficiency for demanding applications

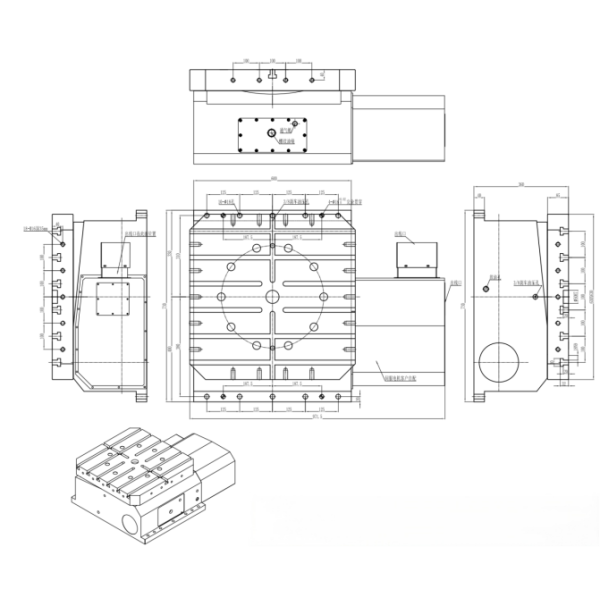

DC500 Parameter Table
ItemUnitData
Turntable Diametermm500*500
Turntable Heightmm290
Central Through Holemm∅100
Motor Standard Specification (Direct Shaft Motor)
For Other Specifications and Brands, Please Consult for Customization		-FANUC - βiS22
MITSUBISHI - HF204
T - Slot Widthmm18H7
Minimum Angle Setting Unitdeg0.001
Maximum Rotation Speedrpm40
Total Reduction Ratio-0.076388889
Indexing Accuracyarc·sec±10
Repeatability Accuracyarc·sec4
Locking Method (Hydraulic)Mpa4.5±0.5
Locking TorqueN·m2650
Continuous Cutting TorqueN·m1580
Maximum Cutting Torque (When Brake is Locked)N·m2650
Product Weightkg370
Load CapacityFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structurekg800
Allowable Load - FFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN58000
Allowable Load - FXLFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN·m2650
Allowable Load - FXLFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN·m7900

Free Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structure

DC630 Parameter Table
ItemUnitData
Turntable Diametermm630*630
Turntable Heightmm350
Central Through Holemm∅100
Motor Standard Specification (Direct Shaft Motor)
For Other Specifications and Brands, Please Consult for Customization		-FANUC - βiS22
MITSUBISHI - HF204
T - Slot Widthmm18H7
Minimum Angle Setting Unitdeg0.001
Maximum Rotation Speedrpm25
Total Reduction Ratio-1:70
Indexing Accuracyarc·sec±10
Repeatability Accuracyarc·sec4
Locking Method (Hydraulic)Mpa4.5±0.5
Locking TorqueN·m4600
Continuous Cutting TorqueN·m2800
Maximum Cutting Torque (When Brake is Locked)N·m4600
Product Weightkg800
Load CapacityFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structurekg1200
Allowable Load - FFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN65000
Allowable Load - FXLFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN·m4600
Allowable Load - FXLFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN·m9500

Free Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structure

DC800 Parameter Table
ItemUnitData
Turntable Diametermm800*800
Turntable Heightmm390
Central Through Holemm∅100
Motor Standard Specification (Direct Shaft Motor)
For Other Specifications and Brands, Please Consult for Customization		-FANUC - βiS22
MITSUBISHI - HF204
T - Slot Widthmm22H7
Minimum Angle Setting Unitdeg0.001
Maximum Rotation Speedrpm20
Total Reduction Ratio-1:90
Indexing Accuracyarc·sec±10''
Repeatability Accuracyarc·sec4''
Locking Method (Hydraulic)Mpa4.5±0.5
Locking TorqueN·m7600
Continuous Cutting TorqueN·m3950
Maximum Cutting Torque (When Brake is Locked)N·m7600
Product Weightkg1020
Load CapacityFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structurekg2000
Allowable Load - FFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN105000
Allowable Load - FXLFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN·m7600
Allowable Load - FXLFree Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller StructureN·m12800

Free Stop Heavy Duty Programmable Rotary Table Horizontal With Cam Roller Structure
